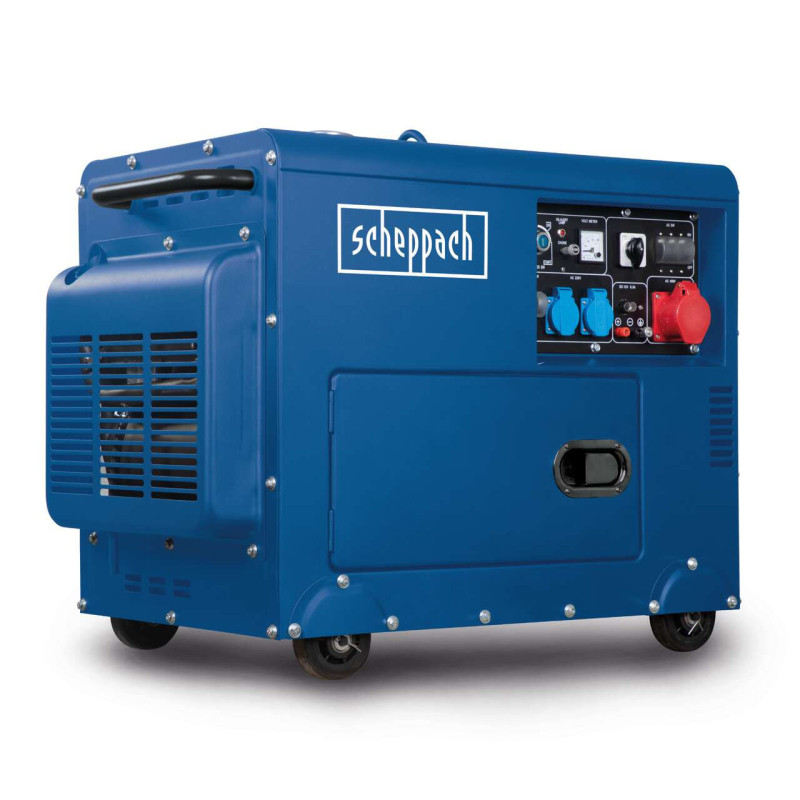

The SG5200D generator from scheppach provides sufficient power for work around the house and on the construction site with a maximum of 5000 W. Thanks to its sturdy housing, travelling device with four wheels and handle, the generator can be used in a variety of ways. A 16 litre tank ensures several hours of power supply and, thanks to the 400 V power connection, machines with high current requirements can also be operated.

Diesel generator with electric start

Max. 5000 W output power

One 400 V connection, two 230 V connections and one 12 V DC connector for maximum flexibility

Stable and robust housing with travelling device and handle

16 litre tank for hours of generator use

The SG5200D diesel generator from scheppach reliably supplies you with power on the construction site or elsewhere so that you can work independently of the power grid. Whether in a spacious garden, in a tent camp, in the forest or on a construction site - the SG5200D supplies enough power for several hours.

Power is provided by an air-cooled 4-stroke diesel engine with 5.7 kW and 418 cc displacement. The SG5200D is supplied with fuel via a 16 litre tank. The engine is started by means of an electric starter, no need to pull the cable. The consumption at 2/3 load is around 1.43 l/h, meaning that the generator set can be used at full load for several hours without refuelling. The fuel gauge allows you to keep an eye on the current fill level at all times. The integrated oil leakage protection protects the engine from damage due to a lack of oil.

The SG5200D generates a maximum output power of 5000 watts. The power generator is also equipped with overload protection, which switches off the socket if the worst comes to the worst.

The integrated AVR control (automatic voltage regulation) ensures a stable output line by quickly equalising voltage fluctuations with changing loads. This benefits the connected consumers if they are either sensitive to voltage changes or belong to the group of electrical devices that are difficult to start.

The generator is sturdily built and weighs an impressive 148 kg. Apart from the ventilation slots, the housing is closed to protect the generator as well as possible from external influences. The SG5200D has four wheels and a handle for transporting the generator. It is also equipped with a brake so that it can be parked safely.

The SG5200D is equipped as standard with a 400 V~ (7.6 A) socket, two 230 V~ (13 A) AC sockets with overload protection switches and a 12 V DC (8.3 A) connection.
