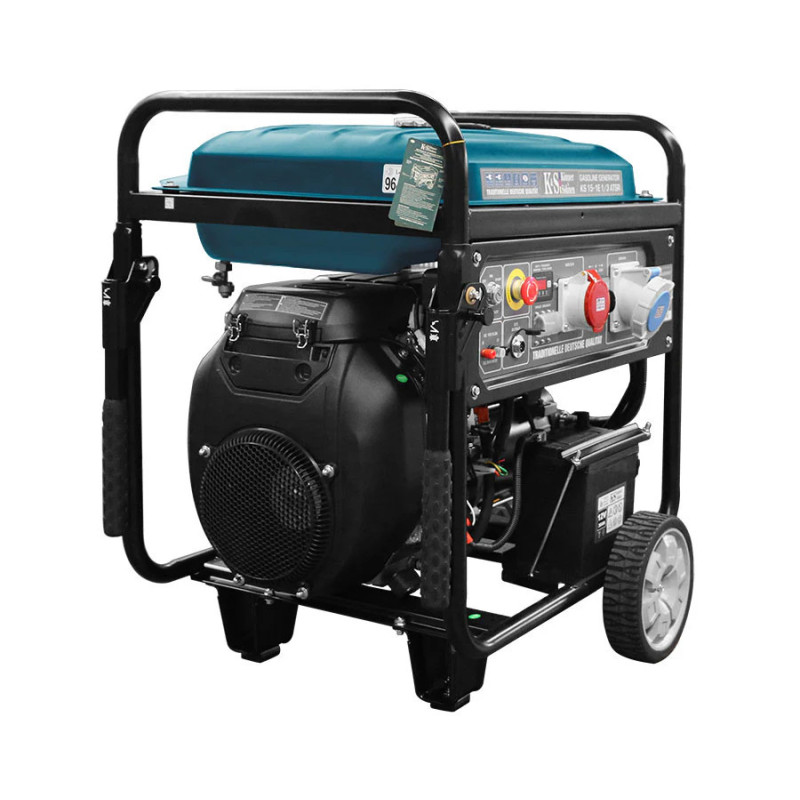

Petrol generator Könner & Söhnen KS 15-1E 1/3 ATSR
3,899.00
Tax included
The advanced VTS phase switching technology enables the generation of electricity for both single-phase (230V) and three-phase (400V) loads.
A generator with 100% copper windings produces more power compared to a generator with other types of windings.
Safety: equipped with safety functions such as automatic switch-off in the event of overload or low oil level.
The generator can run for longer periods without refuelling thanks to the enlarged fuel tank.
Uninterruptible power supply: In the event of power supply interruptions, an ATS connected to the generator automatically switches the power supply from the mains to the generator, ensuring continuous operation.
Security policy(edit with the Customer Reassurance module)
Delivery policy(edit with the Customer Reassurance module)
Return policy(edit with the Customer Reassurance module)
Petrol generator Könner & Söhnen KS 15-1E 1/3 ATSR
| Powerful engine | Powerful and robust air-cooled two-cylinder four-stroke engine (22 hp). Each engine complies with European and international standards for quality, economy and environmental friendliness (including pollutant emissions and noise pollution). |
| Ergonomic control panel | The user-friendly ergonomic control panel allows easy control of the entire appliance, does not require any special skills and is equipped with sockets for the complete consumption of the electricity produced by the generator. Each socket is equipped with a corresponding plug. Emergency stop button. |
| Ats connection | The ATS unit (automatic transfer switch to emergency power) automatically starts the alternator and transfers the load when the main power supply is interrupted and automatically stops the alternator as soon as the main power supply is restored. |
| Alternator with 100% copper winding | The "Könner & Söhnen" brand alternators are equipped with a high-quality synchronous alternator with 100% copper winding. Only the copper winding can withstand the highest voltage overloads without damage and thus ensure long-lasting and reliable operation of the alternator. |
| Steel container | Könner & Söhnen generators are equipped with an enlarged steel fuel tank, which extends the operating time per tank filling. The fuel gauge is located on the fuel tank for easier handling. |
| Vts system | The unique innovative VTS (Voltage Transfer Switch) phase switching system with equivalent performance for single-phase (230V) and three-phase (400V) consumers. Each mode has its own circuit breaker. |
101323-18
Data sheet
- Voltage, V
- 230/400
- Max power, kW
- 15.6 (400 V), 11.5 (230 V)
- Nominal power, kW
- 15 (400 V), 11 (230 V)
- Frequency, Hz
- 50
- Sockets
- 1х63A (230V), 1х32A (230V)
- Fuel tank volume, l
- 55
- LED display
- Engine hours counter, frequency, voltage, low oil level indicator
- Noise level Lpa (7m)/Lwa, dB
- 72/97
- Power output DC, V/А
- 8.3
- Engine model
- KS 780
- Engine type
- Petrol powered 2-cylinder, 4-stroke air-cooled
- Engine power, hp/kW
- 22/16.18
- Fuel type
- Gasoline
- Crank case volume, l
- 1.5
- Engine cylinder volume, cm3
- 750
- Power output controller
- Intelligent voltage stabilization system AVR
- Engine start
- Electric
- Alternator winding
- Copper
- Protection class
- IP23M
- Net dimensions (LxWxH), mm
- 797x705x805
- Gross dimensions (LxWxH), mm
- 807x715x905
- Net weight, kg
- 155
- Gross weight, kg
- 170
- SKU
- KS 15-1E 1/3 ATSR
- Power range, kW
- 10 - 20
- Quantity of phases
- 1/3
- Strom (max.) 230V/400V, A
- 48/22
- Batterie, A·h
- 36
Specific References
- EAN13
- 4260405363445
- MPN
- KS 15-1E 1/3 ATSR
