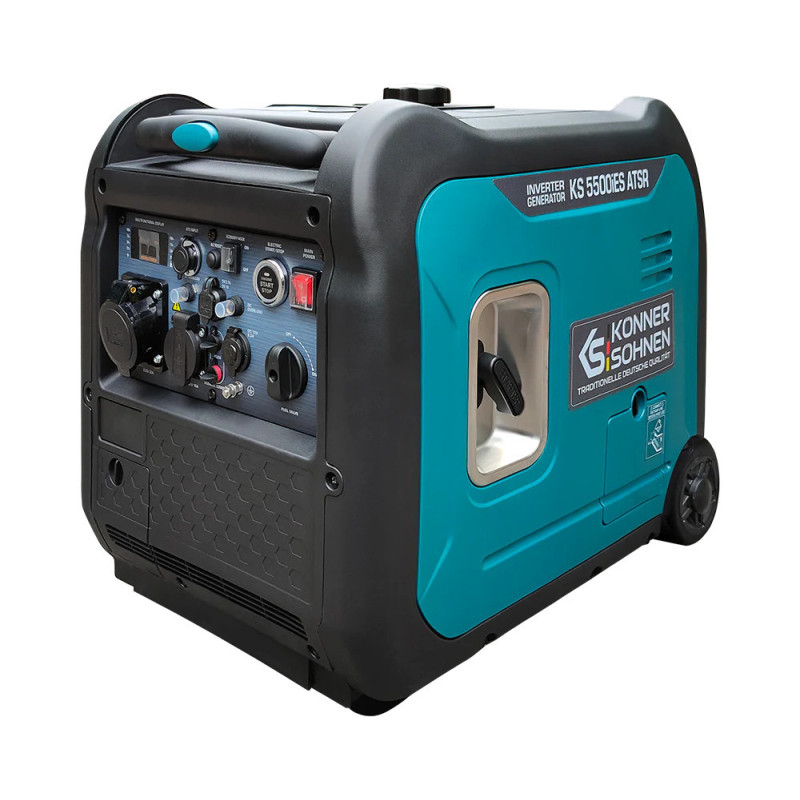

Könner & Söhnen KS 5500iES ATSR inverter generator

Könner & Söhnen KS 5500iES ATSR inverter generator

Name: Könner & Söhnen KS 5500iES ATSR inverter generator
Brand: Könner & Söhnen
SKU: 101323-50
Price: 1459 EUR
Availability: OutOfStock

Review (0)

1,459.00

Tax included

Out-of-Stock

Ideal for sensitive electronics, with an output of 5 kW that meets the needs of a private household.

The economy mode reduces fuel costs by almost half.

Multifunctional LED display enables monitoring of generator performance and timely maintenance.

Noise-reducing housing offers low noise levels and protection against dust and splash water.

Option to connect an AVR system for automatic generator start in the event of a power failure

Security policy(edit with the Customer Reassurance module)
Delivery policy(edit with the Customer Reassurance module)
Return policy(edit with the Customer Reassurance module)

Inverter generator Könner & Söhnen KS 5500iES ATSR

Pure sine wave	Built-in inverter module with microprocessor control controls the generator's functions and generates a stable 230V 50Hz sine wave voltage that is also suitable for sensitive power consumers.
Robust motor	The robust engine from Könner & Söhnen fulfils all European quality standards, including the latest EURO V emission standards. The robust K&S company motor is provided with an individual serial number, which can be used to monitor production and service quality.
Eco mode	The ergonomic control panel is equipped with an ECO mode switch. This mode reduces fuel consumption at low loads by up to 50% due to lower engine speeds.
ATS connection	The ATS unit (automatic transfer switch to emergency power) automatically starts the generator and transfers the load when the main power supply is interrupted and automatically stops the generator as soon as the main power supply is restored. The generator is equipped with an ATS connection (GX 20, 7-pin) for KS ATS 4/25 inverter switch box.
Ergonomic control panel	Convenient arrangement of all basic functions: multifunctional LED display (voltage, frequency, operating hours counter), operating status indicators: overload and short-circuit protection, low oil fuse, reset button for resetting the control system and restoring the power supply, connection for parallel connection of the generators, two USB outputs (5V/1A, 5V/2.1A), 230 V socket and earth terminal.
Reduced noise level	The generator is equipped with a soundproofed housing with a minimum noise level of 66 dB (7 m) for easier operation. This housing is equipped with handles and castors for easy handling and an even wider range of applications.
Alternator with 100% copper winding	The high-quality brushless alternator with permanent magnets and 100% copper windings can withstand high loads, ensuring continuous and reliable operation of the alternator.
Parallel connection	The inverter generators are also equipped with a parallel connection function that guarantees double the power. You can link two generators and connect devices with a higher output.
Additional accessories	The generator is equipped with additional accessories: Spark plug spanner, oil filler funnel, cable for parallel connection, Schuko plug 16 А, PH2 screwdriver 6.0 mm, plug 32 А CEE.

Reference 101323-50

Data sheet

Voltage, V: 230
Max power, kW: 5.5
Nominal power, kW: 5
Frequency, Hz: 50
Current (max), A: 23.9
Sockets: 1xSchuko 230 V, 1xCEE 230 V 32 A
Fuel tank volume, l: 13.5
Laufzeit bei der Belastung 50%, h: 8.4
LED display: Multifunctional: load, fuel level, voltage, frequency, working hours; overload indicator, voltage indicator, oil level indicator
Noise level Lpa (7m)/Lwa, dB: 66/91
Power output DC, V/А: 8.3
Engine model: KS 330i
Engine type: Petrol powered 1-cylinder, 4-stroke air-cooled
Engine power, hp/kW: 9.5
Crank case volume, l: 0.85
Engine cylinder volume, cm3: 312
Engine start: Manual/electric
Alternator winding: Copper
Protection class: IP23M
Net dimensions (LxWxH), mm: 610x470x535
Gross dimensions (LxWxH), mm: 680x510x605
Net weight, kg: 52
Gross weight, kg: 57.8
SKU: KS 5500iE S ATSR
Power range, kW: 5 - 10
Quantity of phases: 1
Batterie, A·h: 1.6
Parallelschaltung: +
ATS Anschluss: Eingebauten ATS
